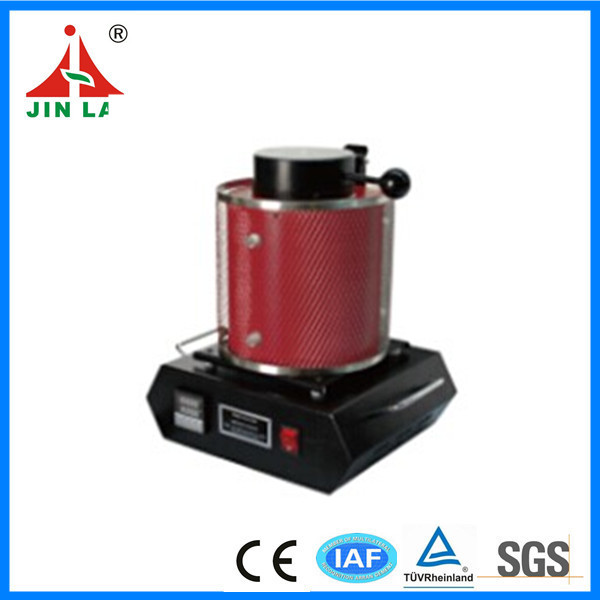

Home 1KG Portable Gold/Silver Melting Furnace

1KG Portable Gold/Silver Melting Furnace

Product Features:
Apply SSR controller, alloy made heating element which has melting point up to 1900℃. High temperature proof ceramic melting chamber, high aluminum protection and other advanced, top quality components, in addition to unique design, all consolidate furnace’s durability and working efficiency over current markets furnaces.

Technical Parameters:
Max. temperature of machine: 1150℃
Casting color: orange, black, red

Description	1KG Melting Furnace
Model	JL-MF-1
Input power	1500W
Power supply(220V)	50/60HZ,7A
Power supply(110V)	50/60HZ,14A
Measurement accuracy	±0.5%FS
Working environment	0-50℃,30-85%RH
Net size	310360370mm
Packing size	380380420mm
Net weight	11KG
Gross weight	13KG

Graphite melting furnace with neck:

Description	model	weight	size
Description	model	weight	Φ1	Φ2	Φ3	H1	H2
1KG graphite melting crucible	GM	140G	65	38	50	125	115
