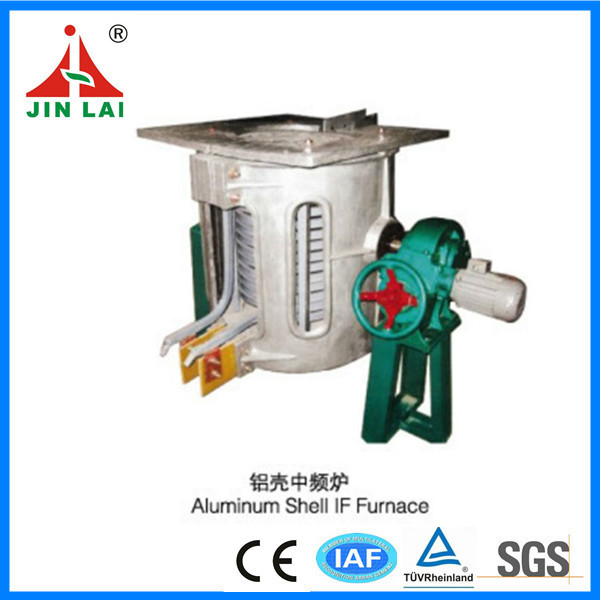

KGPS Aluminum Shell Melting Unit


Overview and Application:

Medium frequency induction melting furnace is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting. It’s applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel sliver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.





Performance and features:

  1. Zero-voltage scanning soft start, start or stop at any time under any state without impact on power supply;
  2. Rapidly melting, low production cost, low pollution, conforming to environmental protection requirement;
  3. Melting directly from low temperature, available for fully emptying of solution, easy change of melting material;
  4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
  5. Furnace shell with cast aluminum ally or steel construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
  6. Adapt angle of the inverter automatic adjustment circuit design, automatically match the load impedancekeep the equipment running in good working condition without adjusting the compensation capacitanceautomatically diagnose error and easy to maintenance.

Medium Frequency Induction Heating Machine
Model NO.
(capacity)
Input power(50/60HZ)   Water consumption
(Ton/hour)
Power/Ton(KW/H)
power (KW) Input voltage (V)  current
(A)
Direct current (A) Direct voltage (V) MF voltage (V) MF frequency (KHZ) steel iron Red copper brass aluminum Melting time
(minute/furnace)
JL-KGPS--0.1T 100 380 160 200 500 750 1-2.5 5-10 800 750 450 400 580 30-70
JL-KGPS--0.25T 160 380 256 320 500 750 1-2.5 5-10 750 700 440 380 550 30-70
JL-KGPS--0.3T 200 380 320 400 500 750 1-2.5 5-10 700 650 430 380 530 35-60
JL-KGPS--0.5T 400 380 640 800 500 750 1-2.5 10-30 650 600 430 370 500 40-60
JL-KGPS--0.75T 500 380 800 1000 500 750 1-2.5 10-30 630 580 420 350 460 40-70
JL-KGPS--1T 800 380 1280 1600 500 750 0.7-1 10-30 600 560 410 340 440 40-70
JL-KGPS--1.5T 1200 380 1920 2400 500 750 0.7-1 20-50 580 530 400 330 420 45-80
720 1010 1260 950 1650 40-70
JL-KGPS--2T 1500 720 1263 1578 950 1200 0.5-1 20-50 560 520 400 330 410 40-85
950 960 1200 1200 1650 40-75
JL-KGPS--3T 2000 720 1600 2150 500 1200 0.5-1 30-60 530 510 400 330 410 40-85
950 1280 1684 1200 1650 45-75
JL-KGPS--5T 3000           0.3-1 30-60 510 490 400 330 410
1000 1850 2280 1315 1850 45-85
JL-KGPS--10T 5000 1000 2130 2660 1315 1850 0.3-1 50-100 500 470 400 330 410 45-85
Interior temperature:1.steel  1650°C   2.iron1450°C    3.red copper 1150 °C     4.brss 950 °C    5. aluminum 700 °C    6.tin:400 °C
