Home JL-60KW

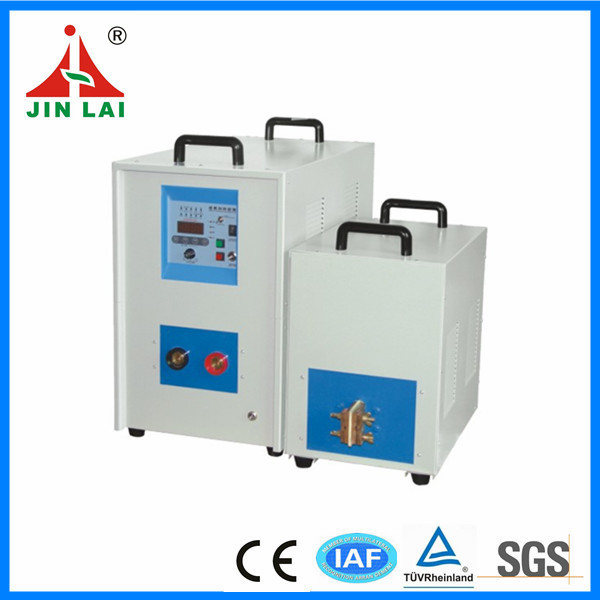

JL-60KW
Main Feature:
  • It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
  • It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.
  • About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
  • It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
  • It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.

Technical Parameters

Model JL-60KW
Input power desire 3 phase 380V  50/60HZ
Oscillate power max 60KW
Max input current 80A
Oscillate frequency 30-100KHZ
Cooling water desire 0.3Mpa≥6L/MIN
Duty cycle 100% 40°C
Dimensions(L*W*H) Generator 640*350*610mm
Transformer 470*290*460mm
Net weight 50kg/30kg
Cable length 2-6(Meters)
