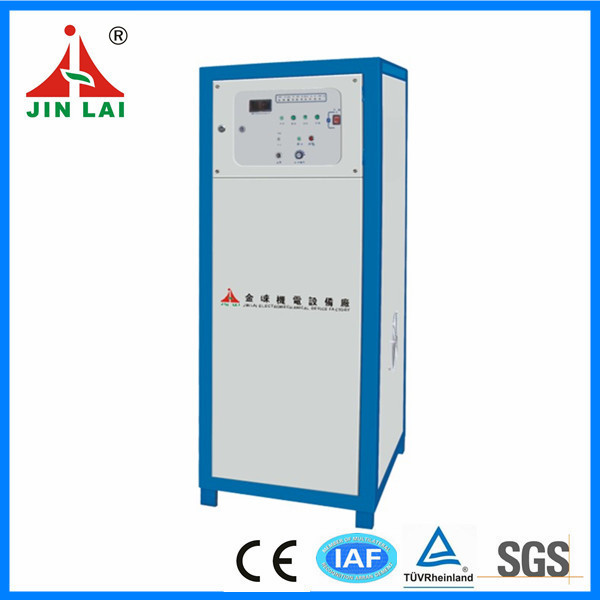

Home JLZ-160KW
JLZ-160KW
Main Feature:
  • Big power, low frequency and good diathermancy.
  • High frequency, low power consumption, easy installation and simple operation.
  • It can continuously work for 24 hours for the comprehensive full load design.
  • It adopts the IGBT inverter circuit in parallel connection, which ha high load adaptability.
  • It has functions as over-voltage, over-current, over-heat, phase loss and water shortage alarm indications as automatic control and protection.
  • Compared with other heating models, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.

Technical Parameters:

Model JLZ-160KW
Input power desire 3 phase 380V
50/60HZ
Oscillate power max 160KW
Max input current 240A
Oscillate frequency 0.5-10KHZ
Cooling water desire >0.5MPa  6L/Min
Duty cycle 100% 40°C
Dimensions(L*W*G) 670*620*1600mm
Net weight 170kg
Cable length 2-6(Meters)
